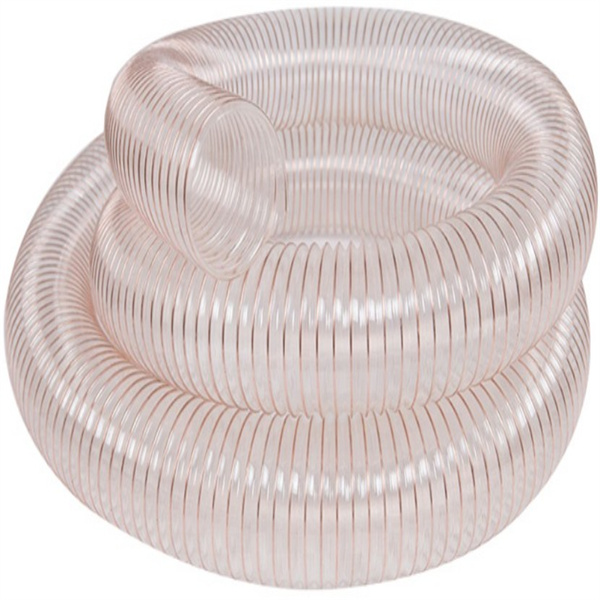

Pu dust

Inquire Now

Description

Polyurethane with copper plated steel wire

Wall thickness:0.4-2.0mm

Working temperature: -40℃ to +90℃

Application:

Suction and transport abrasive solids such as dust, powders, wood chips, granulates, oil, fuel, etc

Inner diameter (mm)	wall thickness (mm)	Working Pressure (bar)	length (m)	bending rading (mm)	cubic meter (m³)
25	0.6-1.5	0.3	20	20	0.06
32	0.6-1.5	0.3	20	30	0.06
38	0.6-1.5	0.3	20	35	0.08
45	0.6-1.5	0.28	20	40	0.1
50	0.4-2	0.28	20	50	0.13
60	0.4-2	0.28	20	60	0.13
65	0.4-2	0.28	20	60	0.2
70	0.4-2	0.25	20	70	0.21
75	0.4-2	0.25	20	70	0.23
80	0.4-2	0.25	20	80	0.25
90	0.4-2	0.23	20	90	0.3
100	0.4-2	0.23	20	100	0.33
110	0.4-2	0.21	20	100	0.35
115	0.4-2	0.21	20	110	0.4
120	0.4-2	0.21	20	110	0.5
125	0.4-2	0.2	20	120	0.5
130	0.4-2	0.2	20	130	0.6
140	0.4-2	0.2	20	140	0.66
150	0.4-2	0.19	20	150	0.8
160	0.4-2	0.19	20	160	0.9
170	0.4-2	0.18	20	170	0.8
180	0.4-2	0.18	20	180	0.9
200	0.4-2	0.17	20	200	1
220	0.4-2	0.17	20	200	1.3
250	0.4-2	0.16	20	220	0.8
275	0.4-2	0.16	20	250	1
300	0.4-2	0.16	20	300	0.35
325	0.4-2	0.15	20	300	0.4
350	0.4-2	0.14	20	320	0.45
375	0.4-2	0.13	20	350	0.53
400	0.4-1.5	0.12	20	400	0.6
450	0.4-1.5	0.11	20	450	0.75
500	0.4-1.5	0.1	20	500	0.9
